Hydraulic / Pneumatic Wedge Mandrel Powered / Non Powered
(Copyrighted product design (Hydraulic Wedge Mandrel) – No. – A-113607/2015)
Product Description
The Hydraulic Wedge Mandrel is a high-performance internal pipe alignment and clamping tool designed for precise positioning, expanding, and securing of large-diameter pipes during welding, fabrication, and pipeline construction. Powered by a hydraulic system, the mandrel uses wedge-type expansion segments to generate uniform radial pressure inside the pipe, ensuring accurate alignment, excellent stability, and consistent root gap throughout the welding process.
Manufactured from high-strength alloy steel and equipped with precision-engineered hydraulic components, the Hydraulic Wedge Mandrel delivers exceptional durability, reliability, and long service life in demanding industrial environments. Its robust wedge mechanism provides superior gripping force, making it ideal for heavy-wall and large-diameter pipelines where accurate alignment is critical.
The Hydraulic Wedge Mandrel significantly improves weld quality by minimizing pipe misalignment, reducing distortion, and ensuring consistent joint preparation. It is widely used in oil & gas pipeline construction, petrochemical plants, refineries, offshore projects, power generation, water transmission systems, and heavy engineering industries.
Key Features
- Hydraulic wedge expansion system for precise internal alignment
- High-strength alloy steel construction
- Uniform gripping force for superior pipe stability
- High load-bearing and clamping capacity
- Suitable for large-diameter and heavy-wall pipelines
- Ensures accurate pipe fit-up and consistent root gap
- Improves weld quality and reduces rework
- Rugged design for harsh construction environments
- Easy operation and maintenance
- Available in standard and custom-built configurations
Product Uses
The Hydraulic Wedge Mandrel is designed to accurately align, expand, and secure pipe sections during fabrication and welding operations.
Common Uses
- Internal alignment of pipeline sections before welding.
- Maintaining consistent root gap during welding.
- Expanding and securing large-diameter pipes.
- Supporting girth welding operations.
- Reducing pipe misalignment and weld defects.
- Assisting in pipeline fabrication and assembly.
- Supporting heavy-wall pipeline construction.
- Improving welding accuracy and productivity.
- Minimizing weld repairs and rework.
- Enhancing pipe fit-up during industrial fabrication.
Applications
The Hydraulic Wedge Mandrel is widely used in industries requiring precision pipe alignment and high-quality welding.
Oil & Gas Pipeline Construction
Ensures accurate alignment of crude oil, natural gas, and petroleum transmission pipelines during field welding and installation.
Cross-Country Pipeline Projects
Ideal for long-distance pipeline construction where precise pipe alignment is essential for consistent girth weld quality.
Petrochemical Plants
Supports fabrication and installation of process piping systems requiring high-precision internal alignment.
Refineries
Used during refinery construction, expansion, and maintenance to improve welding quality and reduce installation time.
Offshore Pipeline Projects
Provides reliable internal alignment for subsea and offshore pipeline fabrication under demanding operating conditions.
Water Transmission Projects
Supports accurate alignment of large-diameter municipal and industrial water pipelines.
Power Generation and Heavy Engineering
Suitable for steam pipelines, pressure vessels, process piping, and heavy industrial fabrication projects requiring precise internal clamping and alignment.
The pneumatic wedge mandrel is used to reduce buckling in the pipe during bending operation.

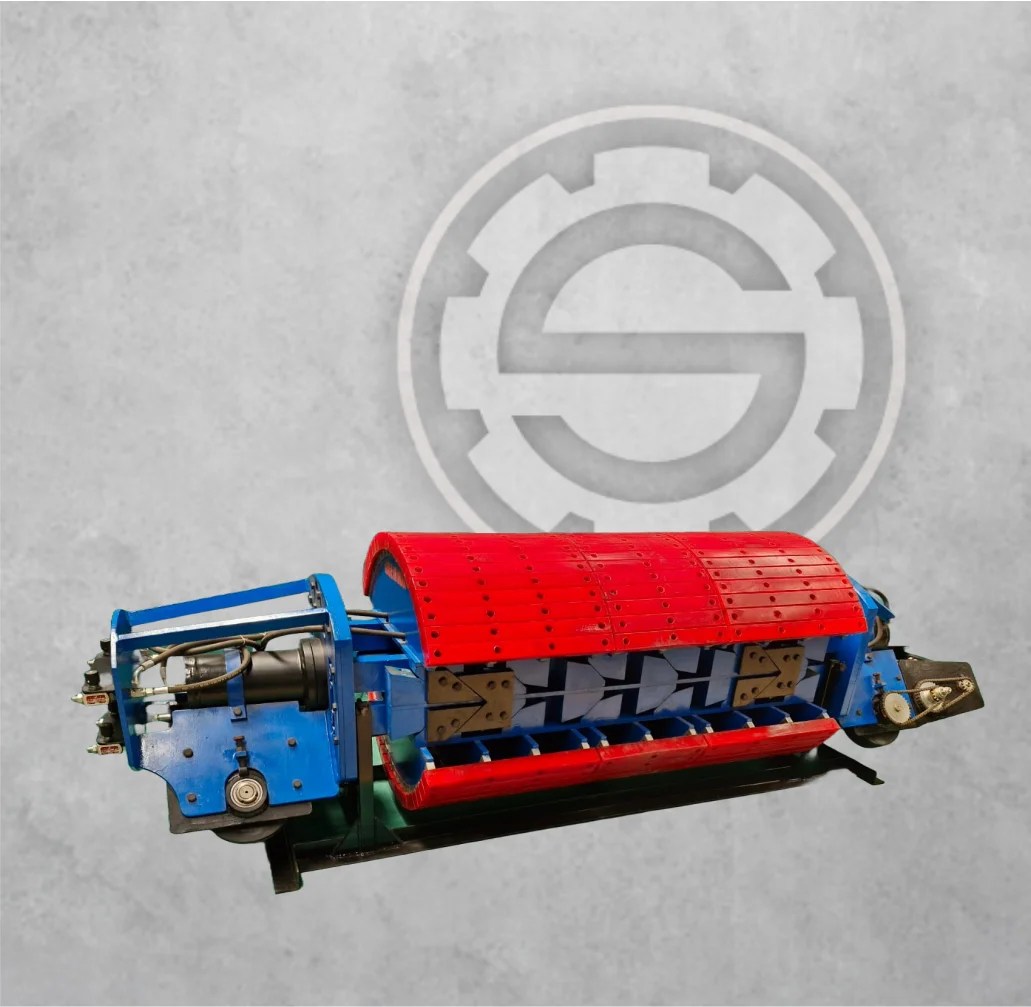

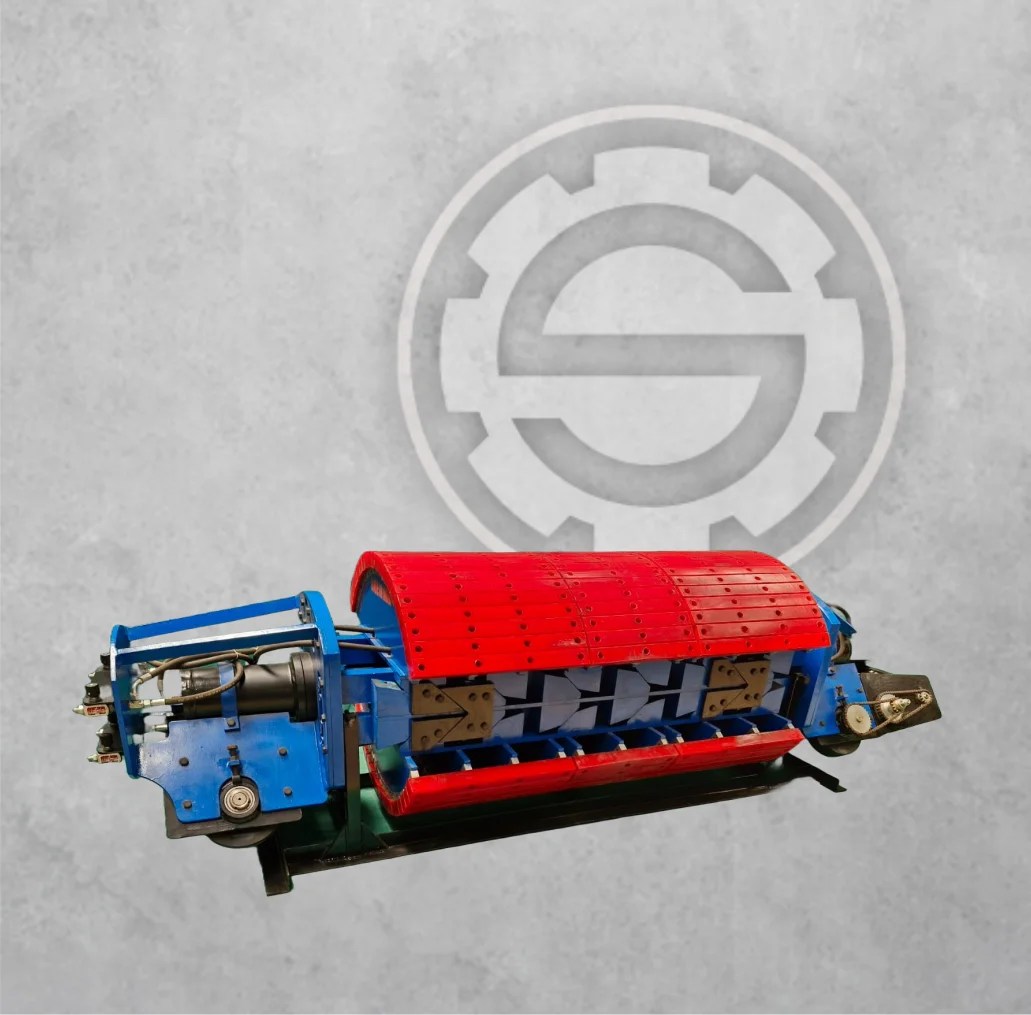

SSEGPL’s Hydraulic Wedge Mandrel is specially designed to reduce the buckling in the pipe during bending operation for oil and gas industry. SSEGPL’s hydraulic wedge mandrel is the copyrighted product which is mostly used in the pipe bending procedure. SSEGPL’s hydraulic wedge mandrel is available in two different model one is powered and another is non – powered hydraulic wedge mandrel.
| Typical Technical Specification | |
| Parameter | Specification |
| Product Name | Hydraulic Wedge Mandrel |
| Sub -Category | Powered or Non Powered |
| Application | pipe bending support |
| Pipe Size | 8″–60″ (custom sizes available) |
| Pipe Wall Thickness | as per requirement |
| Operation | Hydraulic |
| Surface Finish | Powder Coated |
| Brand | SSEGPL |
| Country of origin | India |
| Packing Type | Wooden box for International & loose packing for domestic |
| *customzied on request* | |
Product Description
Why choose product?
- Part of SSEGPL® High-Productivity Bending System, the HYDRAULIC WEDGE MANDREL is particularly successful in providing a smooth bend with no “out-of-round.” Simple design and few parts result in low maintenance cost.
- This SSEGPL Hydraulic Wedge Mandrel was developed specifically to meet the bending requirements of heavy-wall and high-yield grade pipe.
- Wedge Mandrel is Reliable and affordable.
- Available in sizes from 10” to 60”.
- Preventing pipe buckling.
- Preventing flatness and pipe distortion.
Product Features
- During bending operation, pneumatic or Hydraulic pipe bending mandrels allows for, making the bends smoothly
- Non Powered Pneumatic / Hydraulic Wedge mandrel equipped with reach rod and control end.
- A Powered Pneumatic / Hydraulic Wedge mandrel is equipped with hydraulic motor which travels through the pipe for the next bend.
- Wheels provide self- levelling while mandrel is in the pipe.
